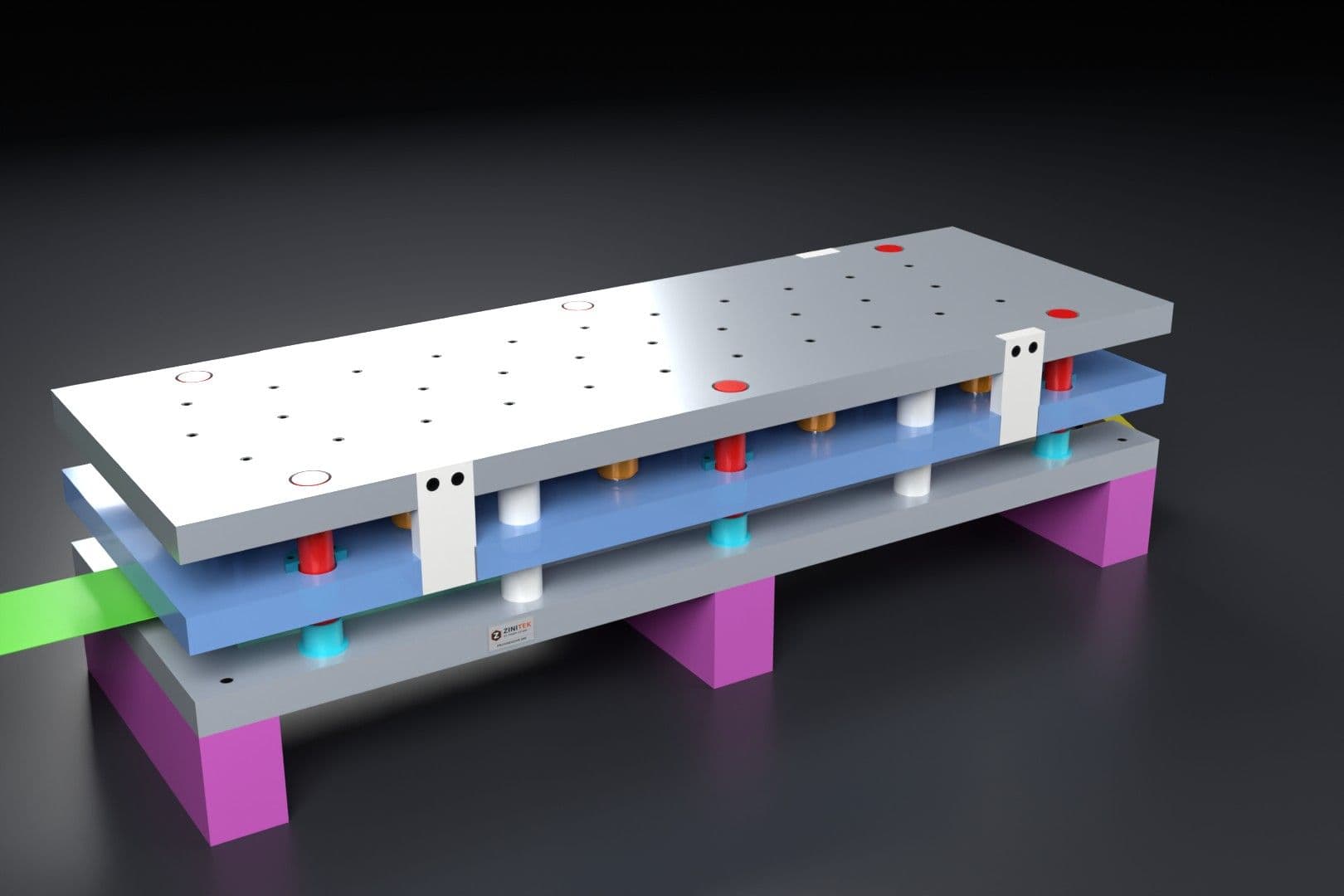

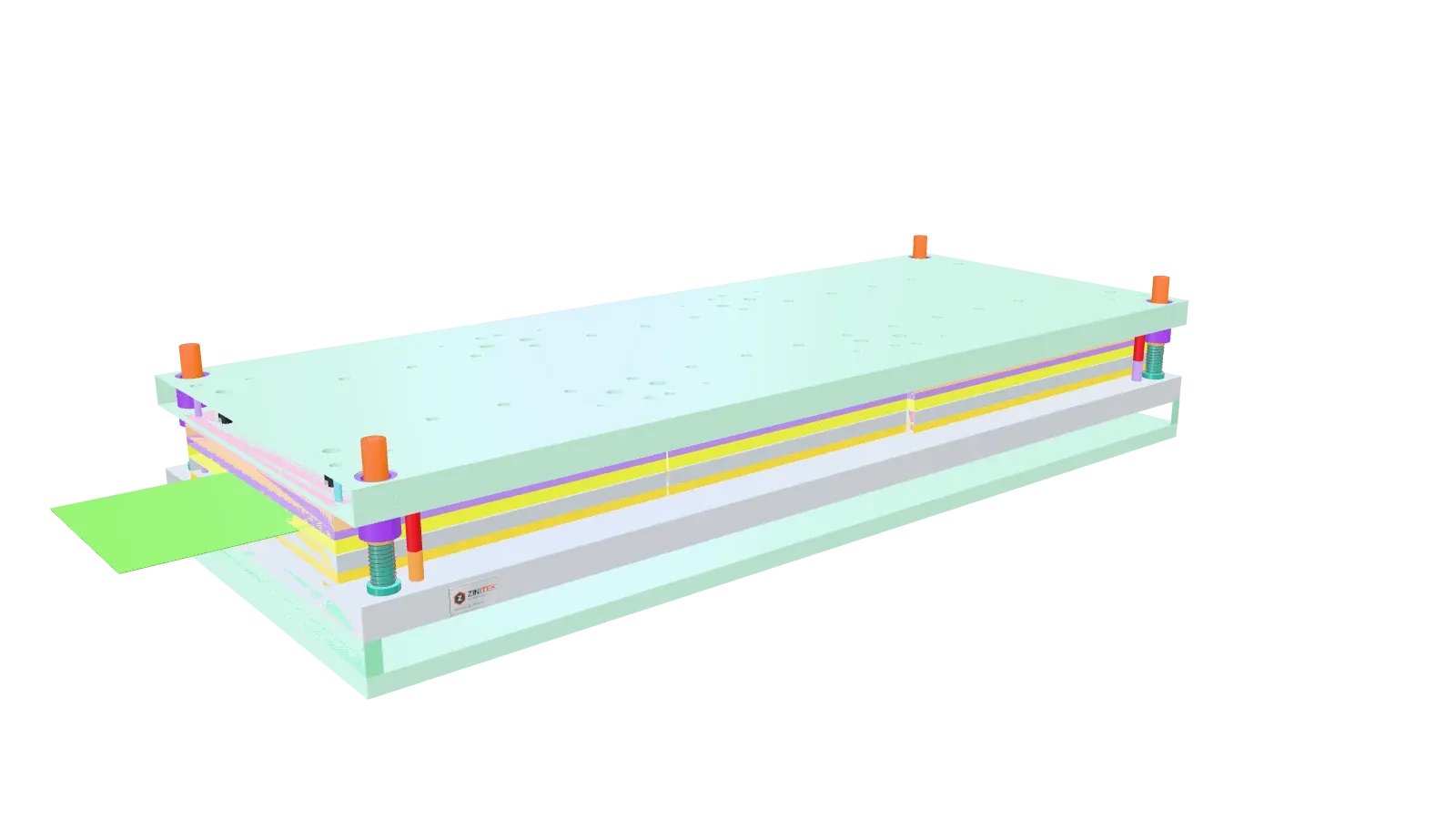

3D model

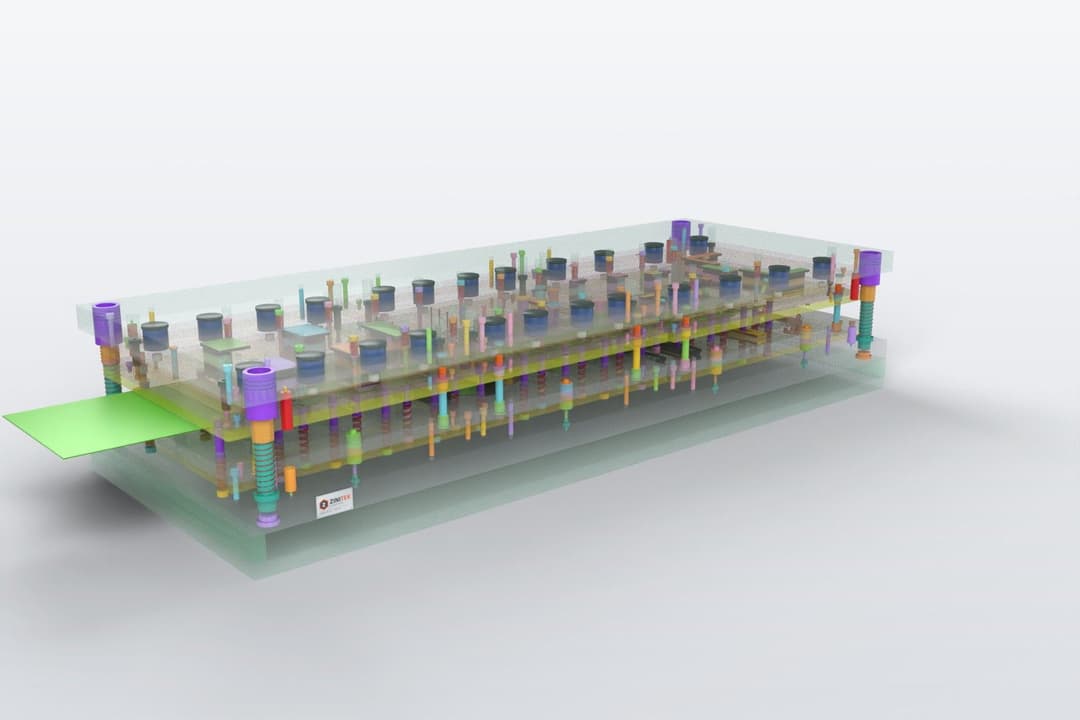

The view-only 3D model runs on a crank at 40 strokes per minute with an 80 mm stroke: the stripper clamps the strip, the punches cut and bend, slugs drop through the shoe, the lifters raise the strip 44.5 mm (the full travel the lifters allow) so the brackets clear the forming blocks, and the feeder pushes it 120 mm around top dead centre. Switch on "Architecture view" to see through the die plates.
Main construction

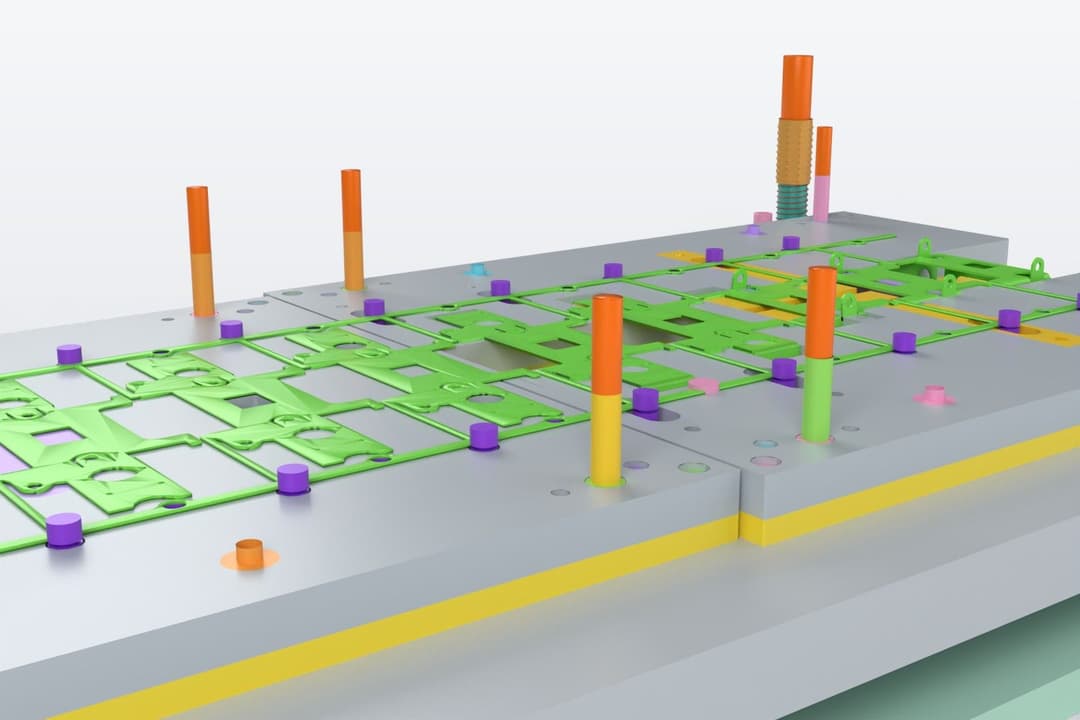

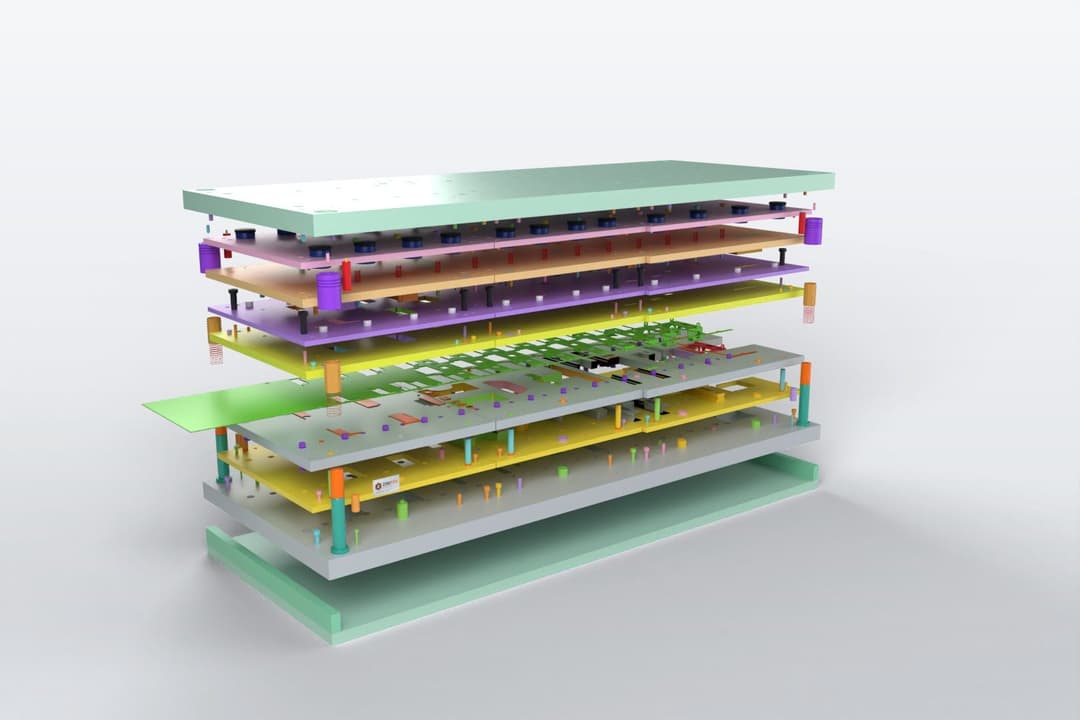

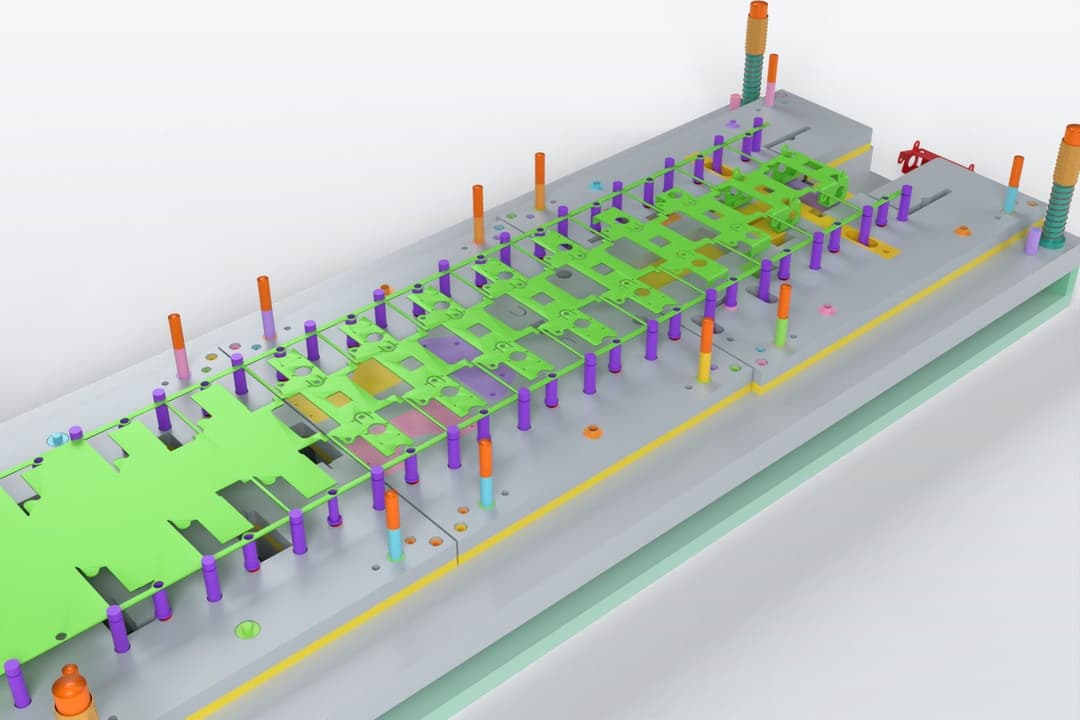

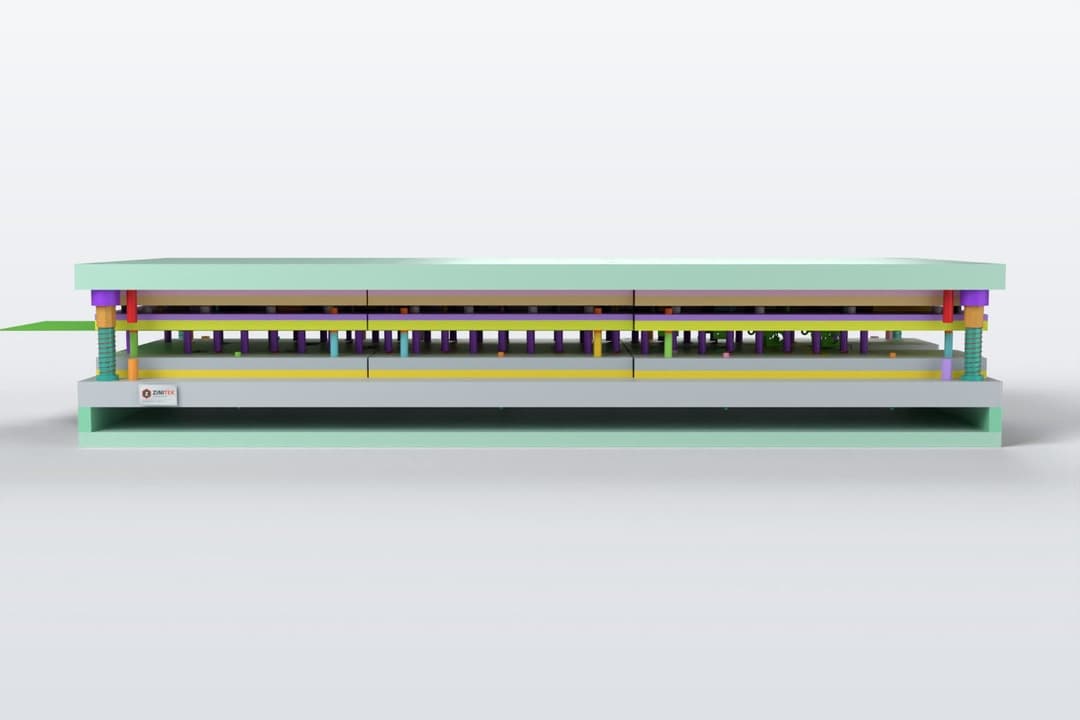

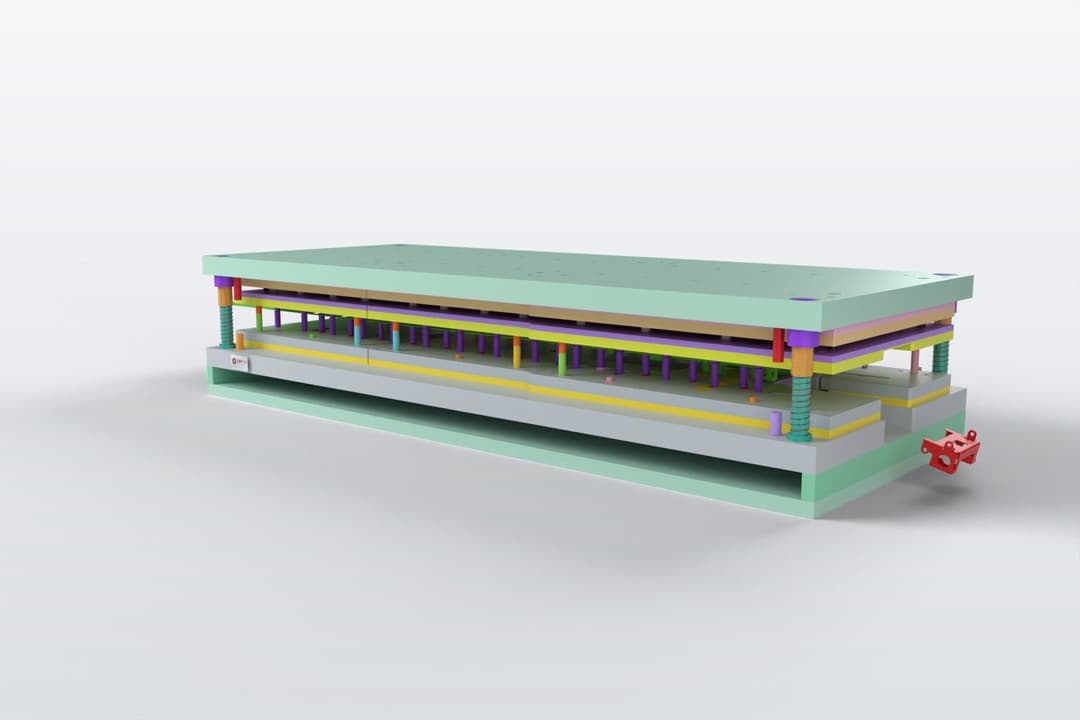

The 310 mm strip passes piercing and outline blanking stations, the two side walls are bent in 3 bends (2 mm inside radius) and the part is cut off and slides down an inclined chute. Estimated cutting force ≈ 1,650 kN, press of 300 t or more; the stripper hangs on 12 shoulder bolts and is lifted by 8 hosed nitrogen gas springs in the lower die, and the die is guided by 4 ball-cage pillar sets.
