Phase Contact Stamping Die for Electrical Equipment

ZINITEK project: Phase Contact Stamping Die for Electrical Equipment with an animated 3D model. Discuss a die solution from your drawing or sample.

3D model of Phase Contact Stamping Die for Electrical Equipment

3D model

Phase contact stamping die: the view-only 3D model plays one full cycle — the crank turns at constant speed, the stripper clamps the strip, the lifters raise it, the strip feeds 33 mm, ribs are embossed, the burred hole is formed, the part is cut off and bent 90°, and the slugs and the finished part drop out. “Architecture view” fades the frame plates so the punches, dies and springs inside can be seen.

Main construction

European-style standard build: lower shoe, die holder, stripper with its backing shoe, punch holder and upper shoe; pitch pilots and strip lifters carry the thin copper strip.

Discuss a die for your part

Send a drawing or sample with material, thickness, volume and press data, and ZINITEK will discuss the design and manufacturing approach.

Send a die design or manufacturing request

Project Gallery

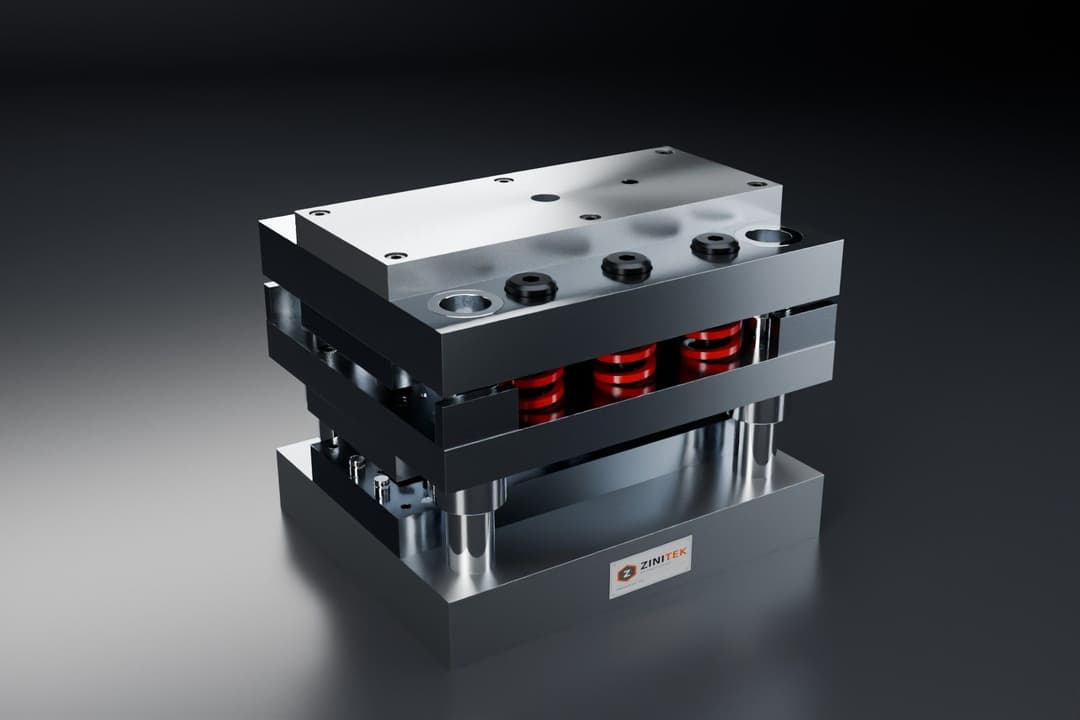

Phase Contact Stamping Die for Electrical Equipment 1

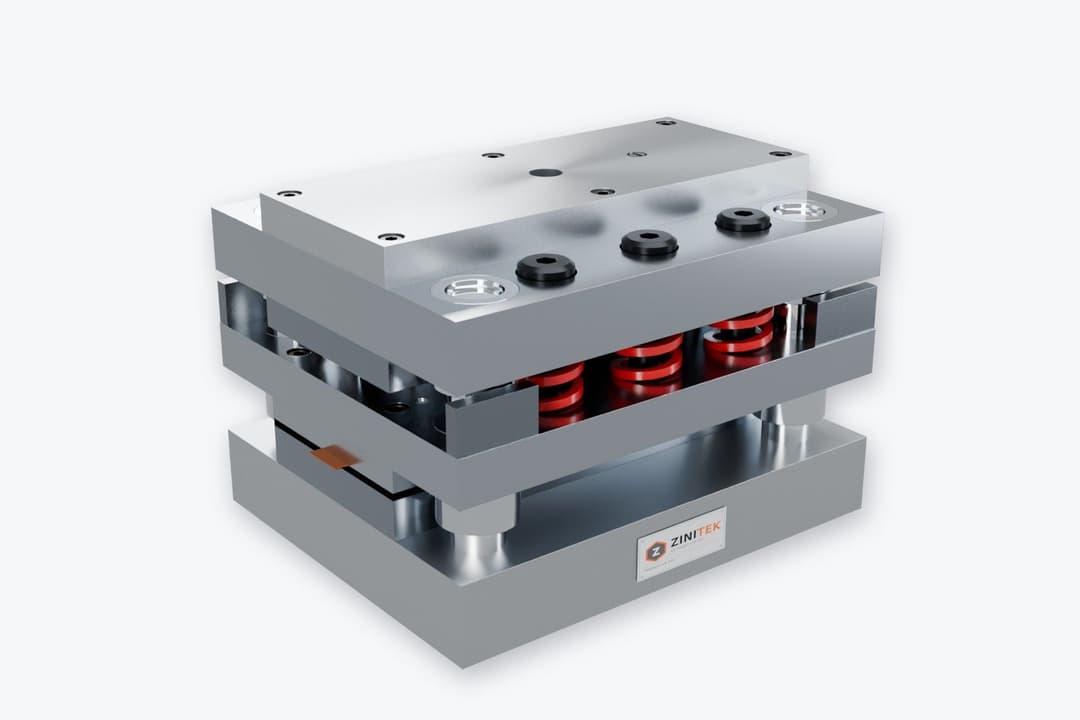

Phase Contact Stamping Die for Electrical Equipment 2

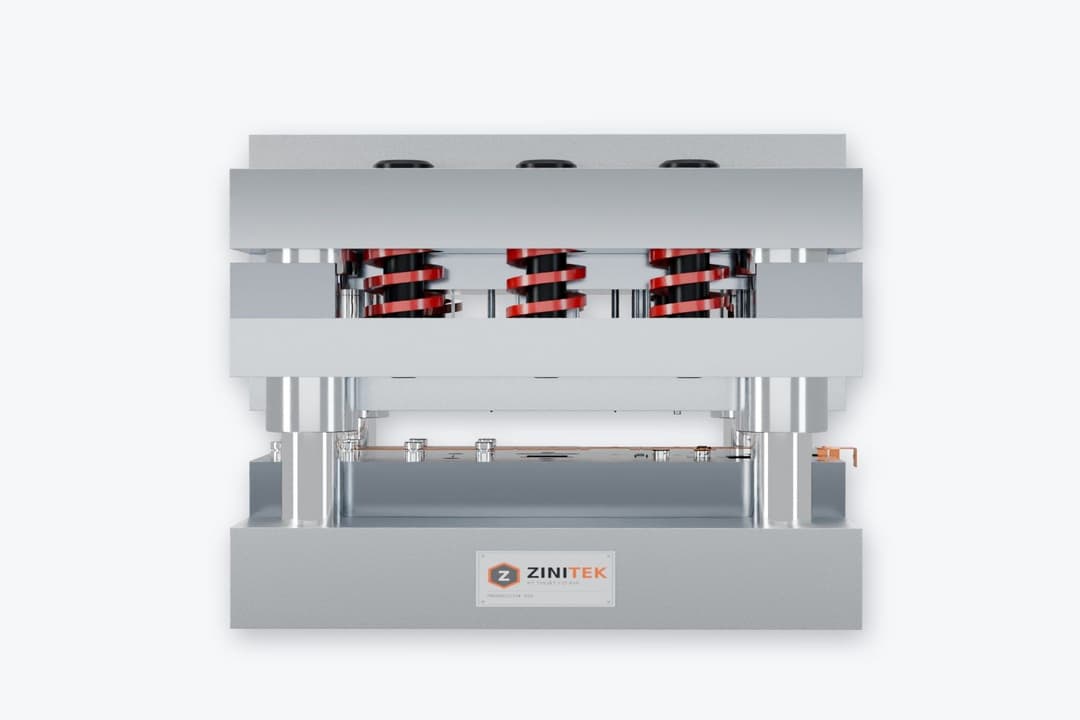

Phase Contact Stamping Die for Electrical Equipment 3
Phase Contact Stamping Die for Electrical Equipment 4
Phase Contact Stamping Die for Electrical Equipment 5
Phase Contact Stamping Die for Electrical Equipment 6
Phase Contact Stamping Die for Electrical Equipment 7
Phase Contact Stamping Die for Electrical Equipment 8
