Multi-Step Progressive Die for Thin Sheet Parts

ZINITEK project: Multi-Step Progressive Die for Thin Sheet Parts with an animated 3D model. Discuss a die solution from your drawing or sample.

3D model of Multi-Step Progressive Die for Thin Sheet Parts

3D model

15-step progressive die for a 0.8 mm sheet-steel part: the view-only 3D model shows the upper half, lower half, guiding system and strip, with the opening–closing motion, the bends forming with the punches, the strip feed and the finished part dropping down the chute. Switch on “Architecture view” to see through the die plates.

Main construction

A 114 mm strip runs through fifteen 45 mm stations: piercing, blanking the two wings, a 13 mm Z-bend and a V-bend, re-forming the V into a Z, slotting and embossing, ribbing and cut-off. Spring pilots in the stripper locate the strip on every stroke and spring lifter rails at the entry raise it for the feed; four Ø50 ball-bush pillars guide the die, recommended stroke ≈70 mm.

Discuss a die for your part

Send a drawing or sample with material, thickness, volume and press data, and ZINITEK will discuss the design and manufacturing approach.

Send a die design or manufacturing request

Project Gallery

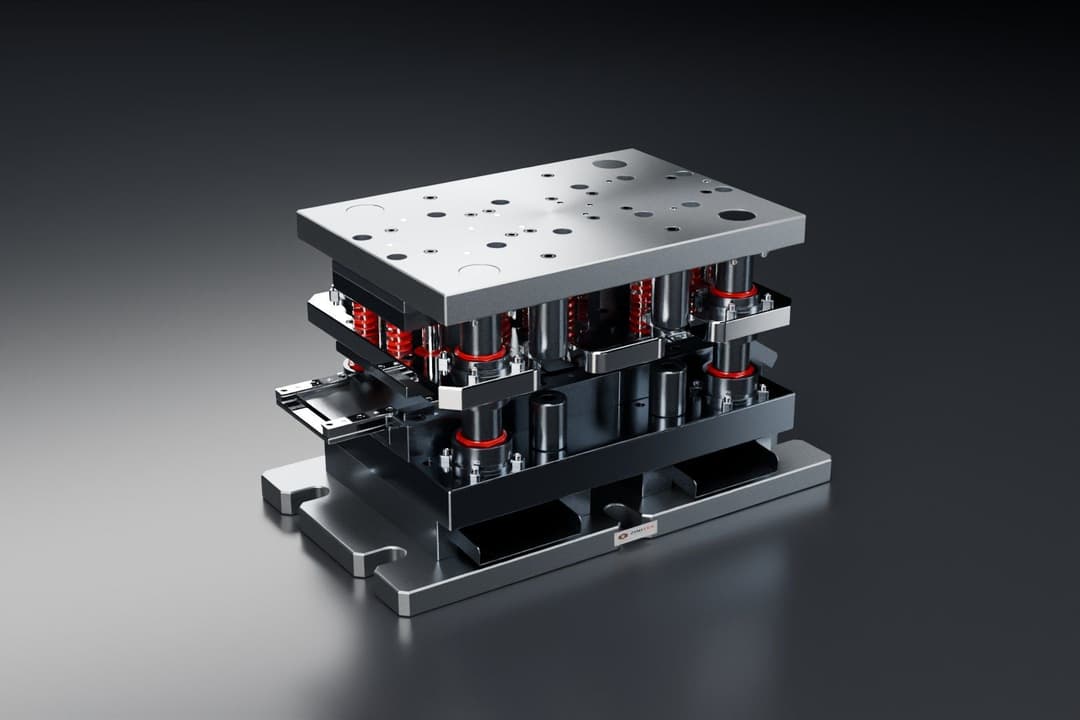

Multi-Step Progressive Die for Thin Sheet Parts 1

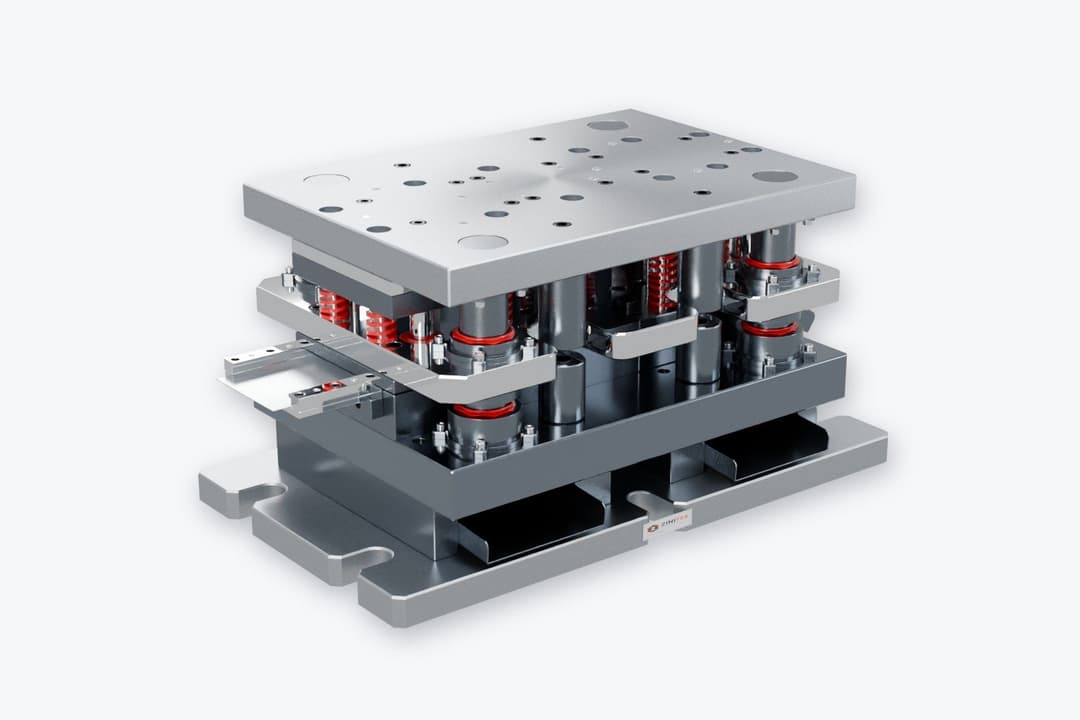

Multi-Step Progressive Die for Thin Sheet Parts 2

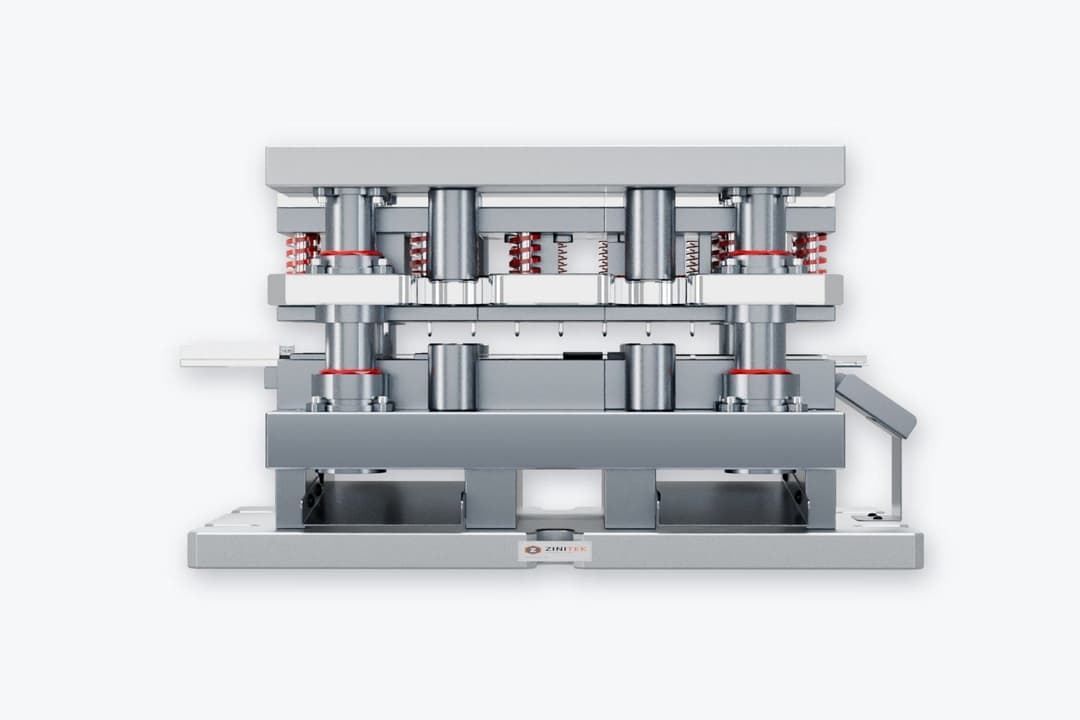

Multi-Step Progressive Die for Thin Sheet Parts 3
